OXEN HASH Immersion Cooling for Crypto Mining
——Provide from Home Mining to Large-scale Mining Solutions
-

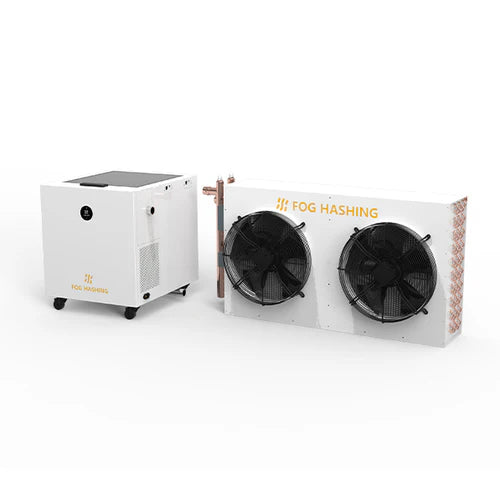

IMMERSION MINING KIT C2——Designed for Home Mining
Leakage Protection | Universal Wheels | Thermal Flow Optimization | Fluids Unloading Bolt | Higher Load
Compared to C1
Completely redesigned, more than 30 details re-engineered, user experience improved.
Support for Various Models of Miners
Following rigorous testing, Immersion cooling kit now supports miners from Bitmain Antminer, Whatsminer and IceRiver KAS miners.
C2 12kW cooling capacity + Adaptive adjustment
Energy-saving solutions for most usage environments
-
At 35 °C, C2 can provide full 12kW cooling capacity. Each miner has a cooling margin of 2kW to support sufficient overclocking.
-
The C2 dry cooler supports automatic frequency adjustment according to the temperature change of the coolant. It can respond to changes in ambient temperature in real-time, ensuring operation with the lowest power consumption.
Product Details
Front View
Top View
Back View
Specifications
1. C2 Tank
| Outer Size | 455(L)*508(W)*536(H)mm 17.91(L)*20(W)*21.1(H)in |
| Inner Size | 398(L)*298(W)*392(H)mm 15.67(L)*11.73(W)*15.43(H)in |
| Net Weight | 40.6kg/89.5Ib |
| Coolant Volume | 80L |
| Input Voltage | Single-phase 200-240V 50/60Hz |
| Power | 180W(220V 50Hz) |
| Display | 1.32”OLED Screen |
| Inlet/Outlet Temp | 45/60℃ |
2. C2 Dry Cooler
| Size | 1076(L)*285(W)*531(H)mm 42.36(L)*111.22(W)*20.9(H)in |
| Power | 5-400W(220V 50Hz) |
| Input Voltage | Single-phase 200-240V 50/60Hz |
| Net Weight | 43.3kg/95.5Ib |
| Intelligent Speed Tuning | Automatically adjust the speedaccording to the temperature |
| Cooling Capacity | 12kW@35℃12kW@95℉ |
| Noise | 68dB(A) 10m |
| EC Fan | 2 pcs |
Immersion Cooling Kit C2 Display
Application——Waste heat recovery scheme
C2 can meet your needs whether it is radiator, floor heating, domestic water, swimming pool. Heating while EARNING! This is a reference schematic and the actual situation should be considered when implementing it.
Immersion Cooling Kit C2 FAQ
What is the connection method of the C2 power supply?
The mining rigs in C2 is directly connected to the power supply or PDU at home, and the tank and dry cooler are connected through standard C13 connectors.
What is the operating logic of the C2 fan? Can it be adjusted automatically?
Our C2 uses an EC fan to adjust the speed according to the temperature of the oil entering the tank (dry cooler oil temperature).There are 2 modes to choose (the mode is changed by a button inside the waterproof junction box outside the dry cooler).Press the button down is HEATING mode (waste heat utilization mode) 41.3℃ to start the dry cooler, 49.7℃ to maximize the dry cooler speed. Press the button up is NORMAL mode (normal operation mode), 20.5℃ to start the dry cooler, 28.9℃ to maximize the dry cooler speed.
How long is the pipeline for the C2 tank?
We provide two 5m pipeline as standard, and we also support customizing other lengths for a fee.
Will the tank automatically power on after a power outage?
Following a power outage, the tank is unable to initiate an automatic startup and necessitates manual activation by clicking on the screen.
