Immersion Cooling Container BC10 Elite Support Up to 40 AntMiner Support Customization
Immersion Cooling Container BC10 Elite Support Up to 40 AntMiner Support Customization
- Utilize Flat Rate Shipping
- Minimize Shipping Cost
- Low-Cost Return
SKU:
Couldn't load pickup availability
OXEN HASH Immersion Cooling for Crypto Mining
——Provide from Home Mining to Large-scale Mining Solutions

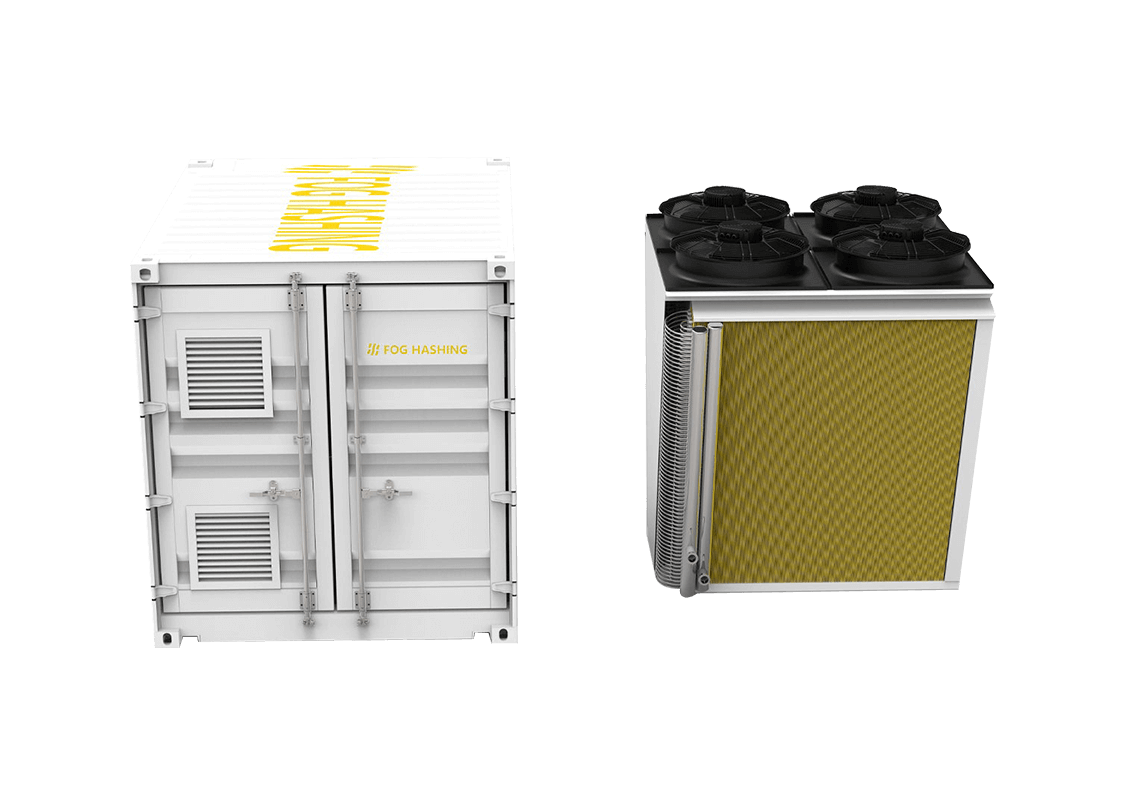

IMMERSION COOLING CONTAINER BC10 Elite——Designed for large-scale mining
Liquid Immersion Cooling: Technical Advantages
• Precise temperature control – Provides a controlled environment for chipsets and eliminates “electron migration phenomena” caused by high heat.
• Stable operation – Reduces failures, increases uptime-rate close to 100%.
• Longer lifecycle – The mining machines are isolated from the air and free from dust, static electricity, short circuit, oxidation, and fan vibration, extending the lifecycle of the mining machine to more than 5 years in average.
• Low noise – Eliminates the noise problem of air cooling and allows to deploy in residential and commercial areas.
• Overclocked hashrate – Up to 60% of hashrate overclocking will shorten the return cycle and boost the ROI.
• Reduced O&M cost – Stable operating capability combined with FH remote monitoring system can reduce maintenance costs by up to 90%.
• Lower cooling cost – FH intelligent power management system can reduce cooling energy consumption (PUE 1.02~1.05) and carbon emission more effectively.
Specifications
| Model | BC10 Elite |
| Dimensions | 2,896(L)mm*2,438(W) mm*3,048(H)mm |
| Qty of Miner(s) | 40*S21 36*T21/M66S 32*S21 Imm/S21 XP |
| Numbers of Tank | 2*B100 Tank |
| Circulation Mode | Single Loop / Dual Loop |
| Coolant Volume | 1,600L |
| Ambient Temperature | -25°C~55°C |
| Electrical Performance | |
| Input Voltage | Three-phase 350-480V 50/60Hz |
| Max Power Load | 280kW |
| Output Voltage |
Single-phase 200-277V 50/60Hz Three-phase 350-480V 50/60Hz |
| Safety Certification | CE/UL |
| Non-mining Power Load | 12-20kW |
| Power Distribution Cabinets | 400A*1 |
| PDU | 2* PDU |
| Smart Meter | Included |
| Cooling Capacity | |
| Cooling Capacity | 250kW |
| Cooling Type | Dry Cooler |
| Inlet/Outlet Temperature | 48°C/56°C |
| Design Reference Temperature | 40°C |
| Monitoring and Management | |
| Monitoring | Operating and Environmental Parameters (Liquid, Temperature, Voltage, Power,Etc.) |
| Management | Tank Level Mini-LED, Web Based Portal Standard SNMP Protocol, Email Integration |
| Extras | |
| Container Certification | China Classification Society Certification |
