The ANTRACK V1 is an advanced mining unit designed to house four Antminer hydro miners, optimizing the mining process with hydro-cooling technology. With a power capacity of 24 kW, it efficiently handles the energy needs of cryptocurrency mining.
Measuring 600mm in width, 2000mm in height, and 1000mm in depth, the unit has a durable net weight of 300 kg for stability and longevity. It features an EJ45 Ethernet interface for fast data transmission and operates with an AC input of 380-415V, 50-60Hz, and 80A input current.
The ANTRACK V1 is engineered for quick deployment and efficient heat management, taking hydro-cooling mining to the next level.
Location: Japan, Abalone Aquaculture Farm (500 sqm, 100,000 abalones)
Scale: 1 ANTRACK V1 Unit + 4 ANTMINER Hydro Miners (24 kW)
Heating Requirement: Maintain seawater temperature at 21±1°C year-round, with heating needed for approximately 8 months. Electric heating costs reached up to $104/day.
Solution: Replace electric heating with the ANTRACK + Waste Heat Recovery System.
Profitability Analysis
-
Additional Mining Revenue: $80.7/day
-
Mining Payback Period: 0.89 years
| Solution | Electric Heating | ANTRACK + Waste Heat Utilization |
|---|---|---|
| Daily Cost | $104 | $104 |
| Daily Revenue | None | $80.7 |
1. Install the ANTRACK unit in the desired location.
2. Connect the waste heat module to the ANTRACK’s front interface.
3. Set up the circulator on the waste heat base.
4. Insert the waste heat device into the designated port.
Activate the circulator and start mining.
Specification
Product Glance
| Model | ANTRACK |
| Version | V1 |
| Capacity | 4 units ANTMINER (S21 Hyd.) |
| Maximum load,kW | 24 |
Detailed Characteristics
| Hardware configuration | |
| Size (Width*Height*Depth),mm | 600*2000*1000 |
| Net weight, kg | 300 |
| Network connection mode | EJ45 Ethernet 10/100M |
| Power Supply | |
| Power supply AC Input voltage, Volt(1-1) | 380~415 |
| Power supply AC Input Frequency Range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 80 |
| Environment requirements | |
| Ambient temperature, °C | 15~45 |
| Water flow, L/min | 32.0~40.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-3) | Deionized water/Pure water |
| Liquid PH | 8.5~9.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |

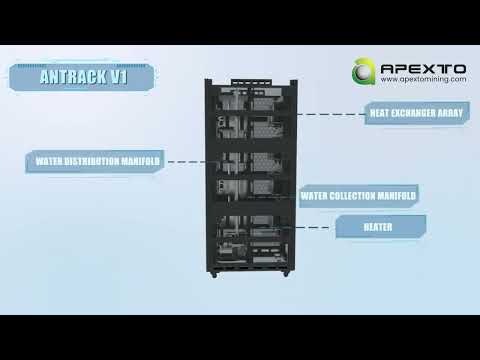

ANTRACK V1 Introduction Video
